Course Project: AT272 Lab 03 Making Front and Rear Wing Spar

Dingming LuSep 23, 2023

I. Intro

Date: 09/11/2023

Today, we are using two aluminum tools to make front spar and rear spar. The procedure is the same as the last time.

II. Procedure

First, the parts from last week are done.

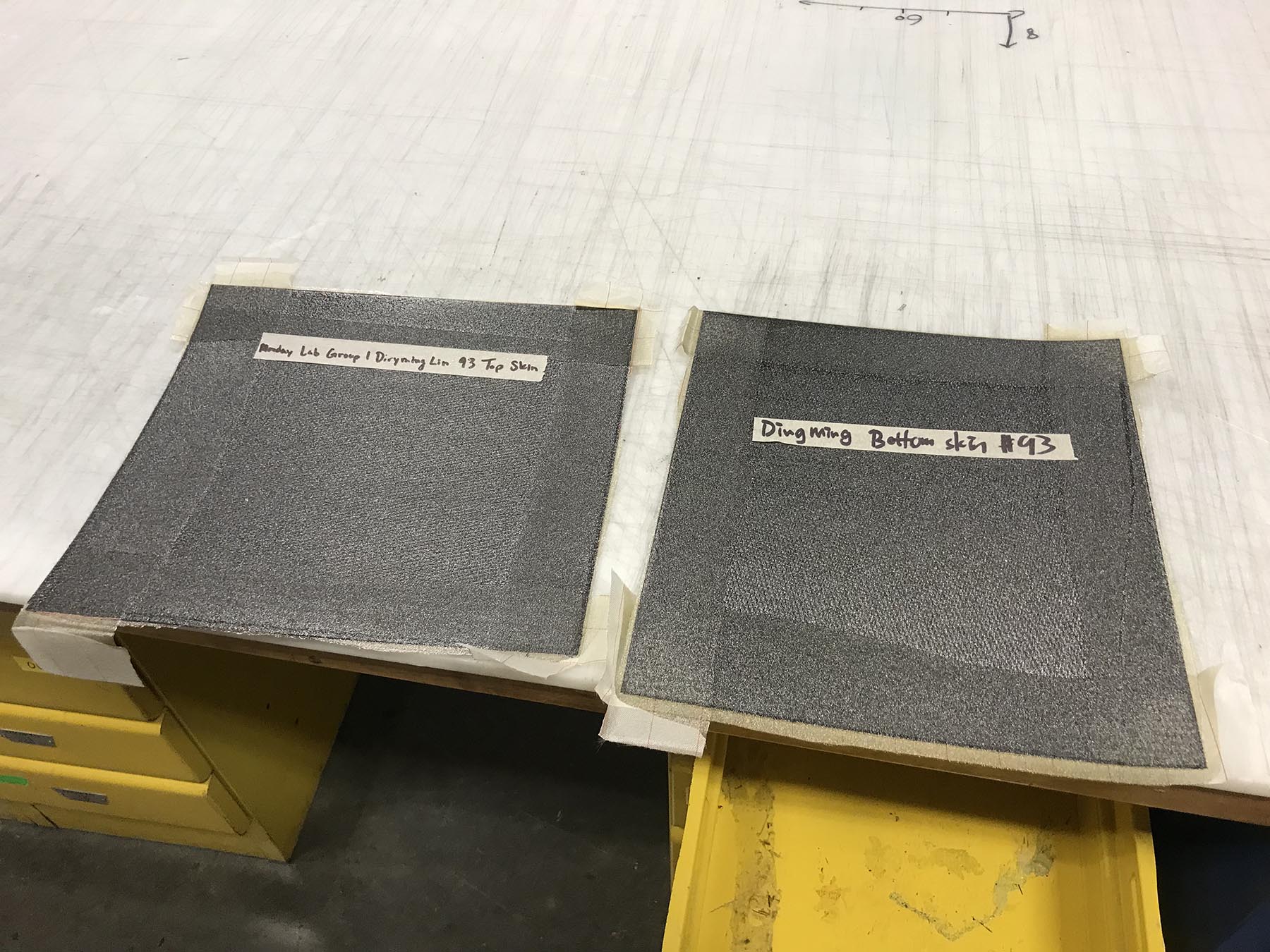

CP AT272 Lab03 01 — Figure 1: top and bottom wing skin

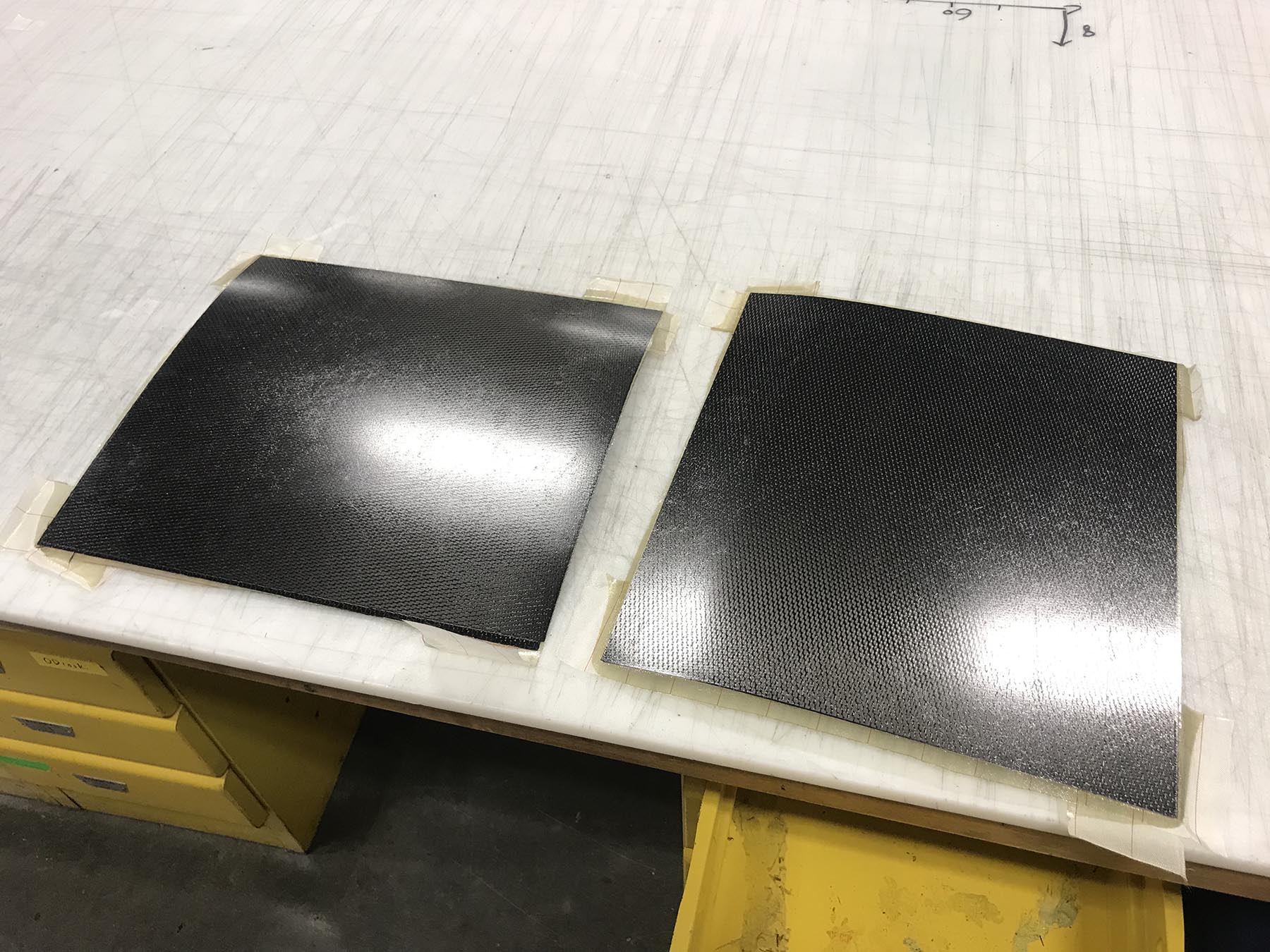

CP AT272 Lab03 02 — Figure 2: top and bottom wing skin

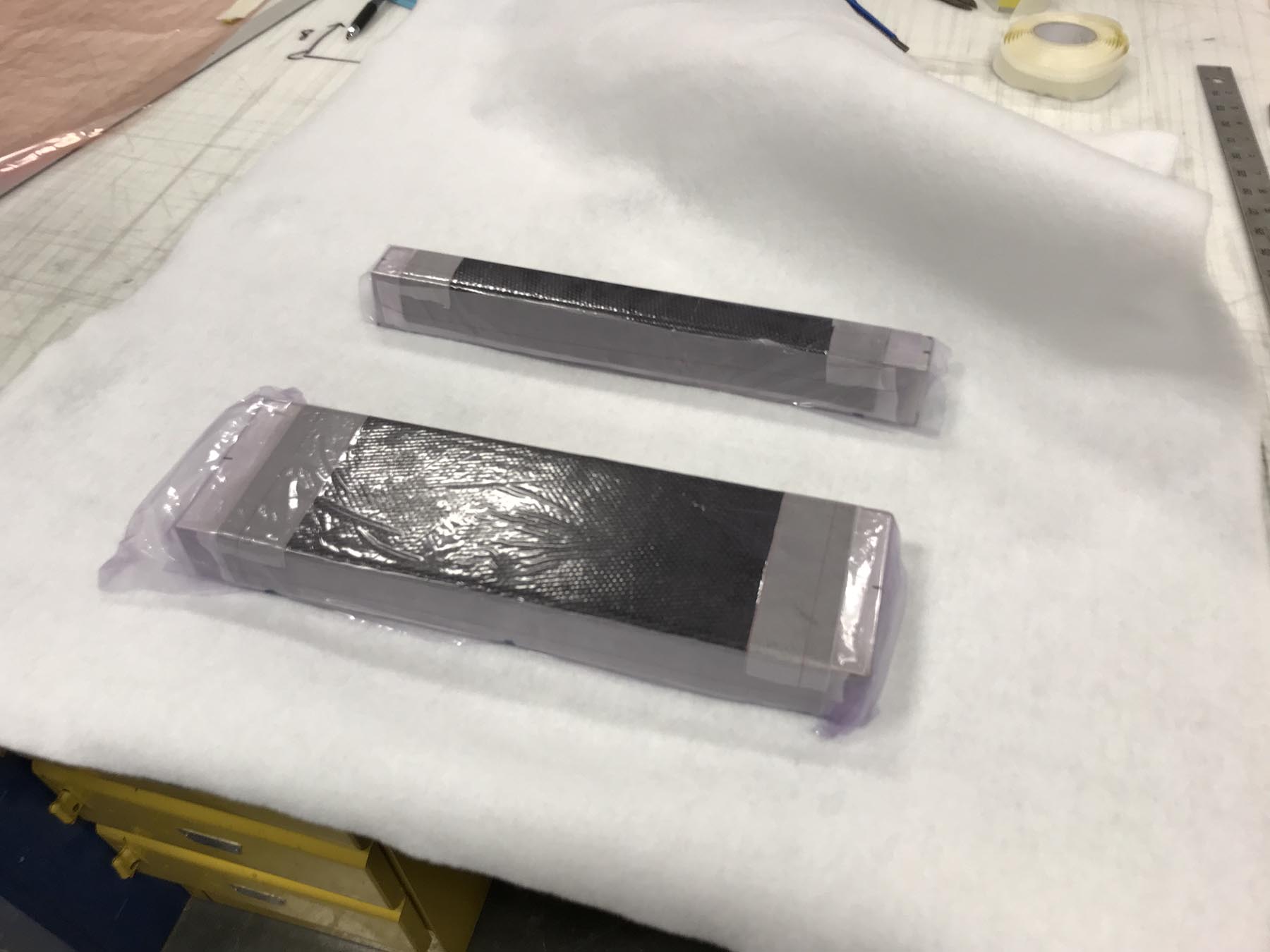

CP AT272 Lab03 03 — Figure 3: front and rear wing spar. It’s the same procedure. When bending around corner, one needs to remove the red cover film before bending

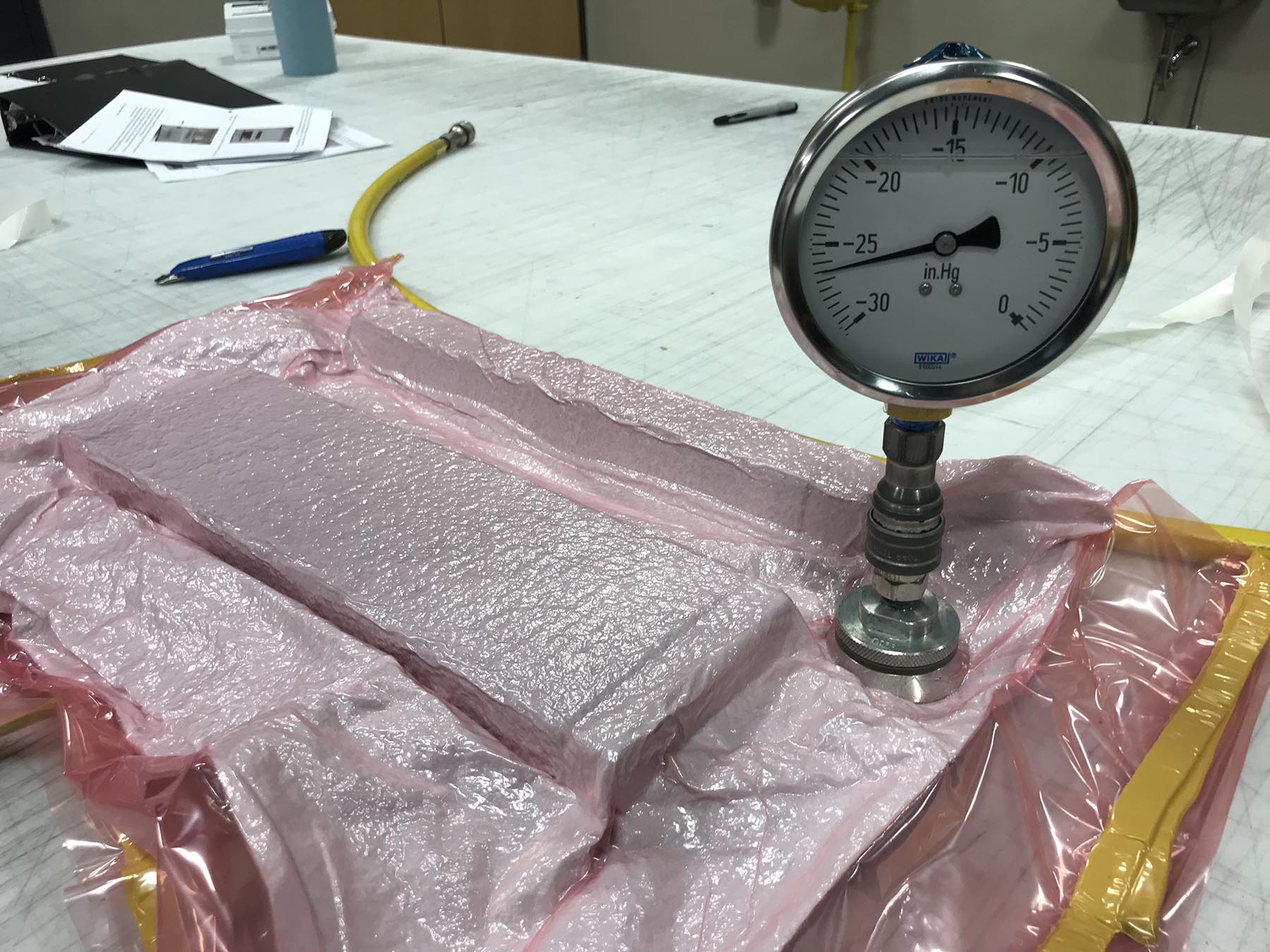

CP AT272 Lab03 04 — Figure 4: pressure check

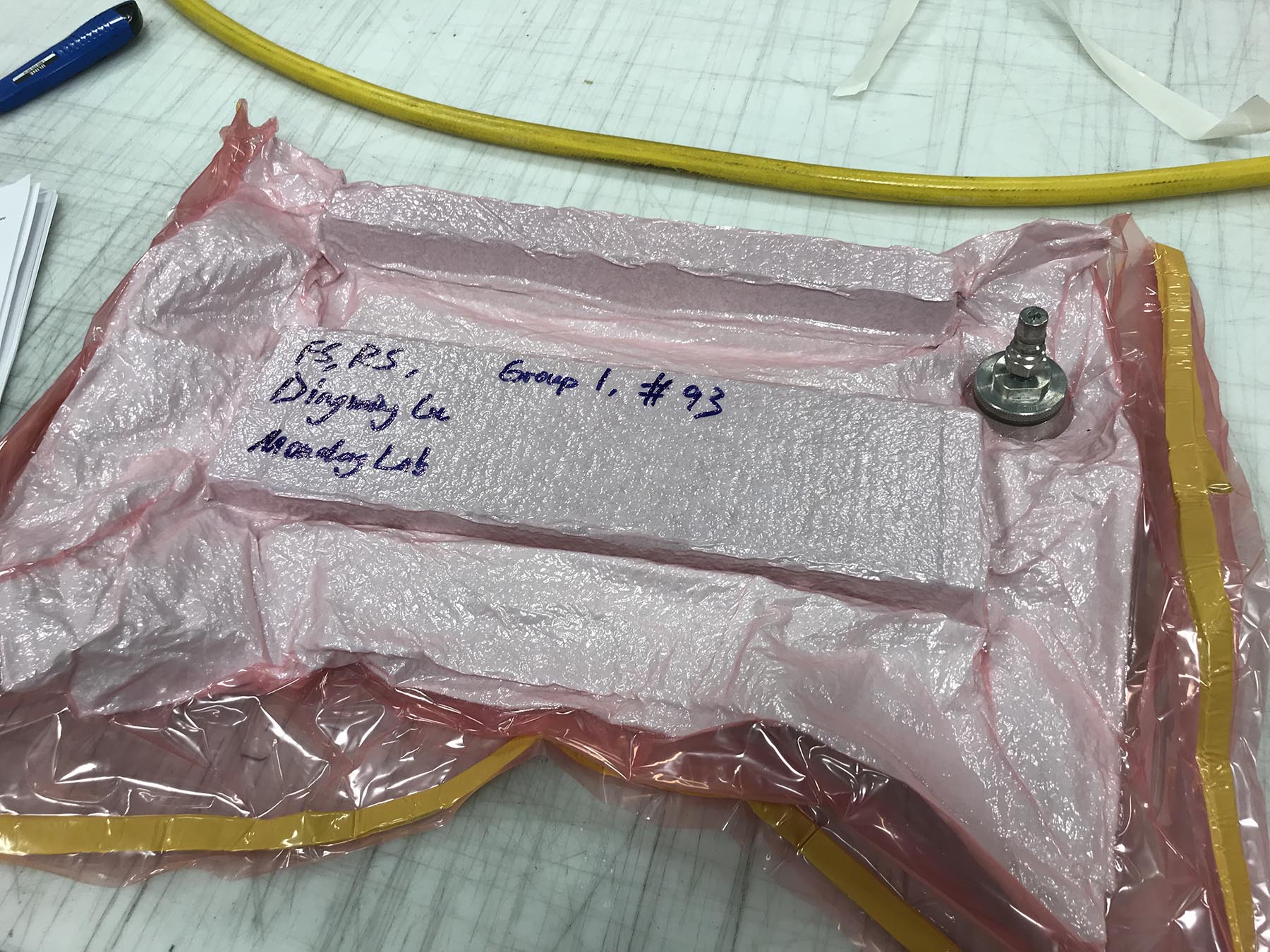

CP AT272 Lab03 05
