Course Project: AT272 Lab 11 Final Assembly

Dingming LuDec 27, 2023

I. Intro

Date: 11/20/2023

On this day, we did the final assembly.

II. Procedure

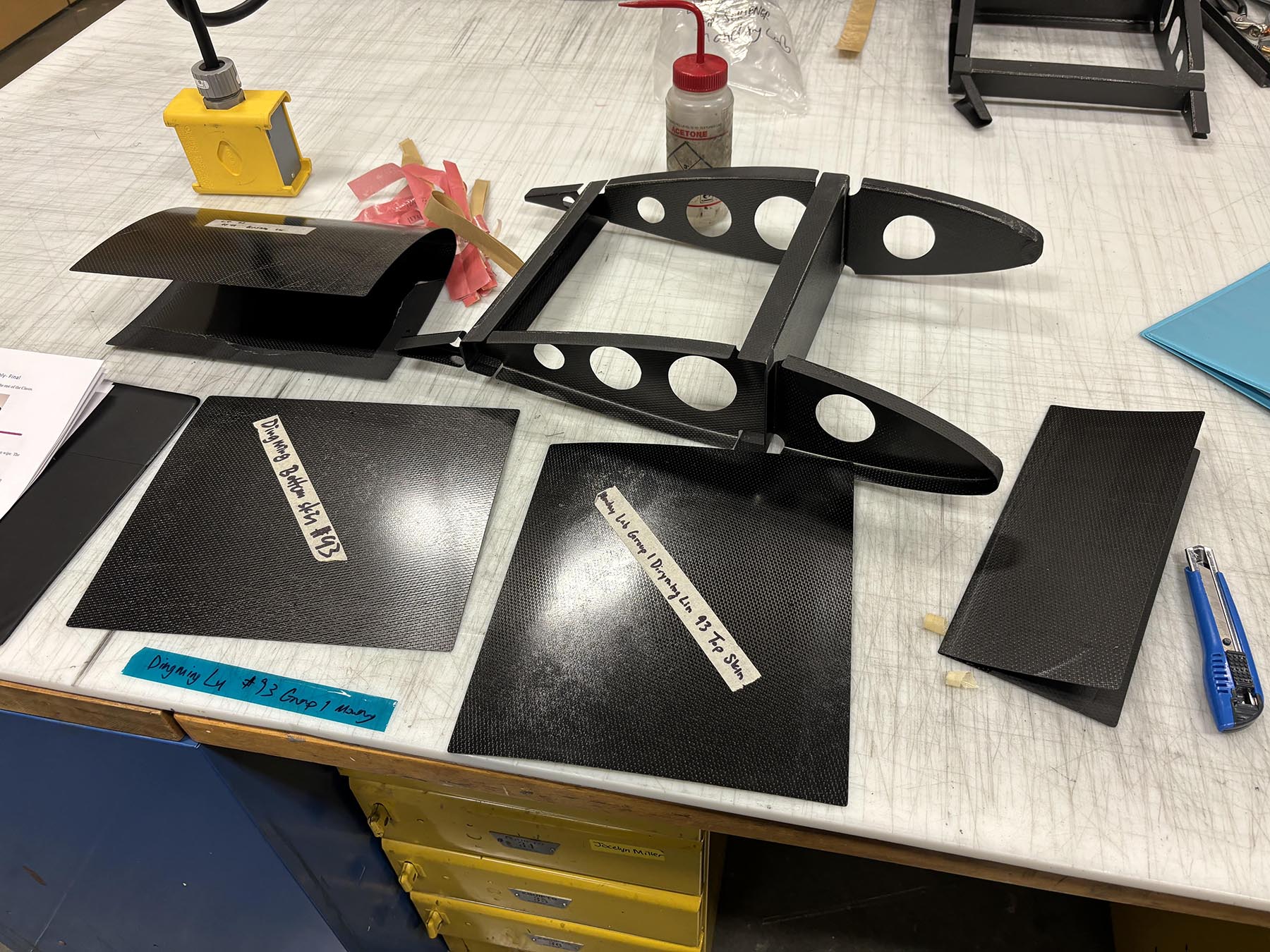

CP AT272 Lab11 01 — Figure 1: Frame is ready

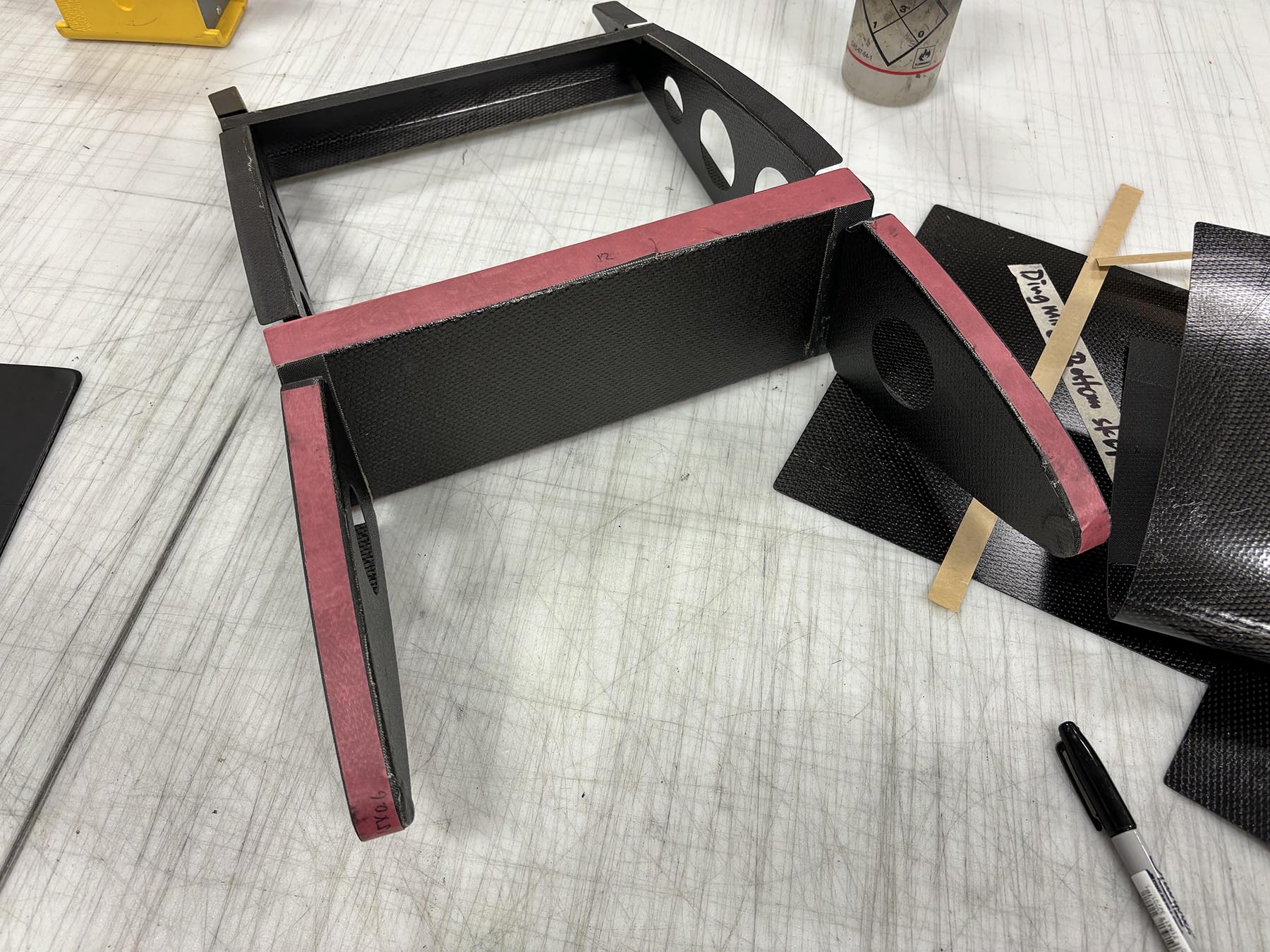

CP AT272 Lab11 02 — Figure 2: put on the adhesives.

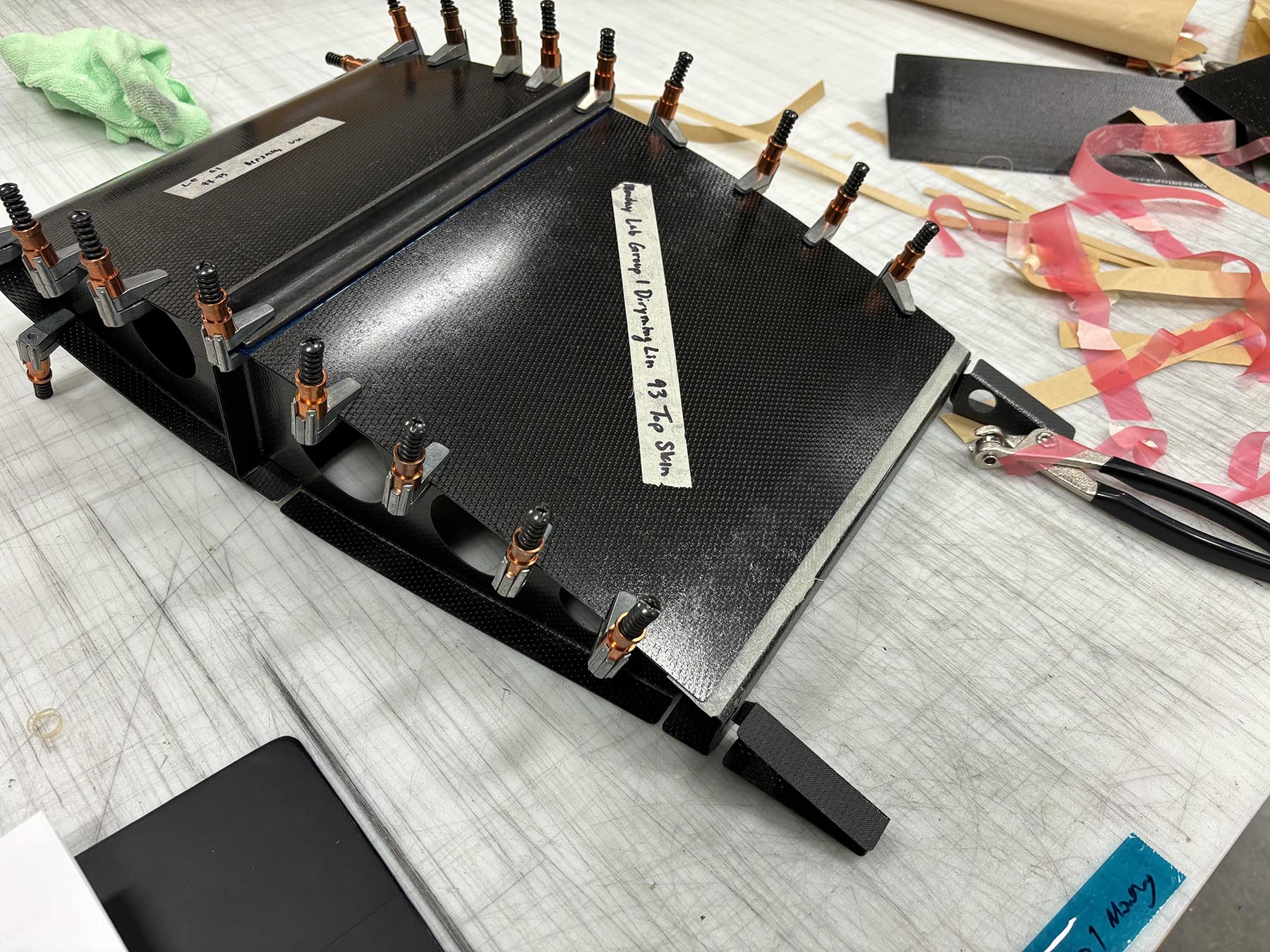

CP AT272 Lab11 03 — Figure 3: secure with clecos

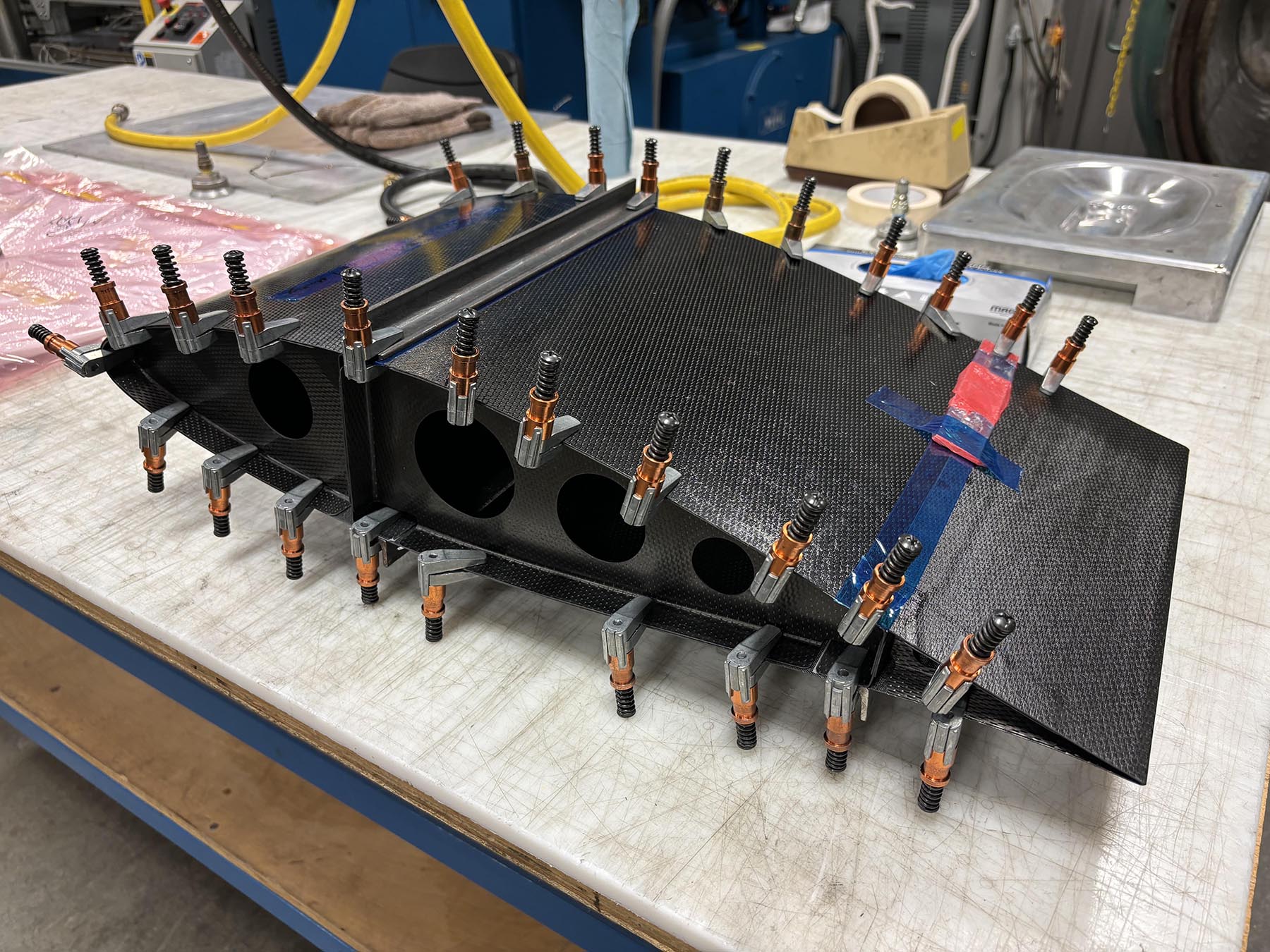

CP AT272 Lab11 04 — Figure 4: use iron bar to make better contact between the surfaces of the wing spar and top and bottom wing skins. This place had a shortage on iron bars.

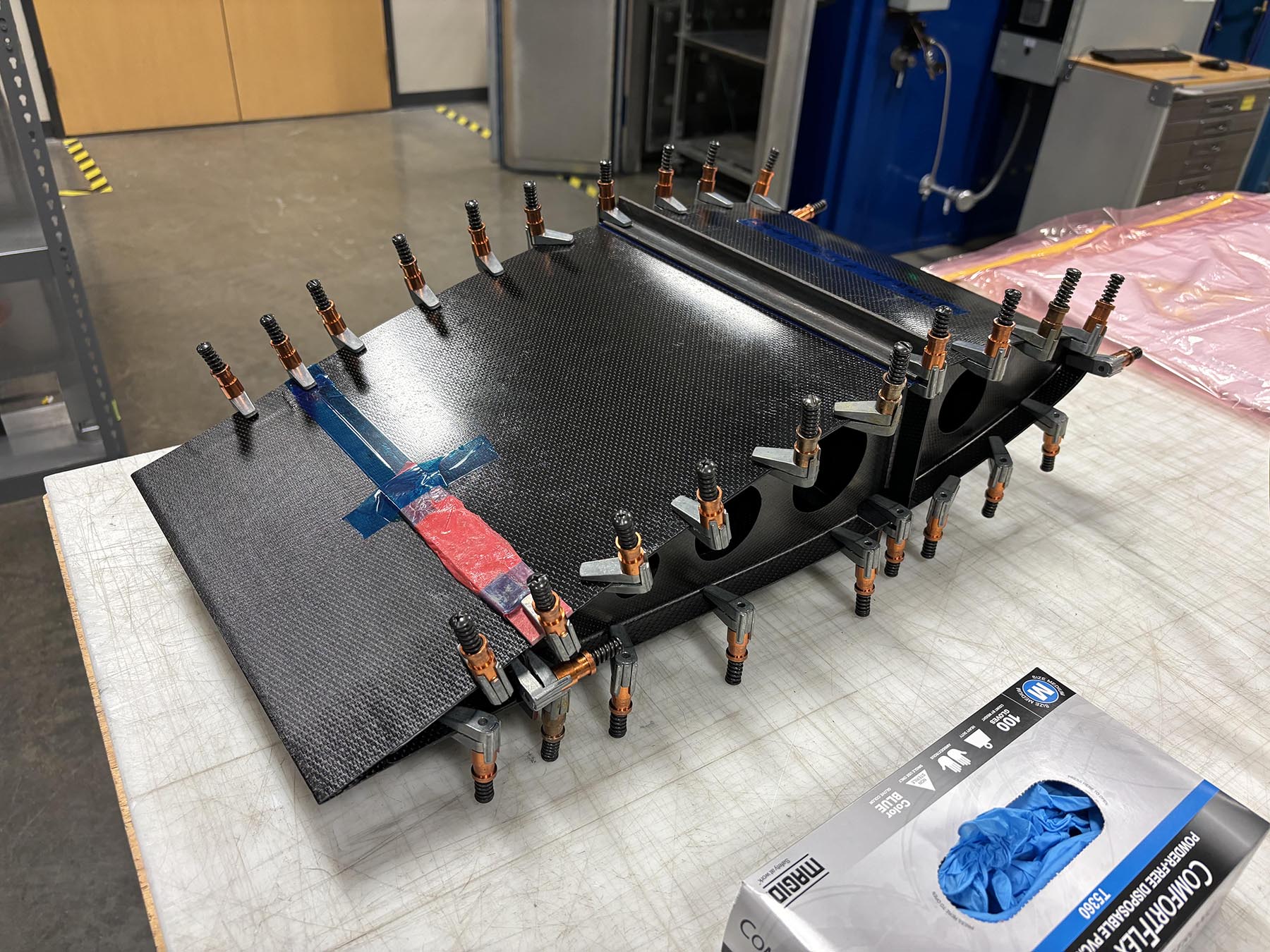

CP AT272 Lab11 05 — Figure 5: ready to cure

Date: 12/04/2023

On this day, we cleaned the lab and got our grades.

CP AT272 Lab11 06 — Figure 6: building tower

CP AT272 Lab11 07 — Figure 7: the tallest ever had

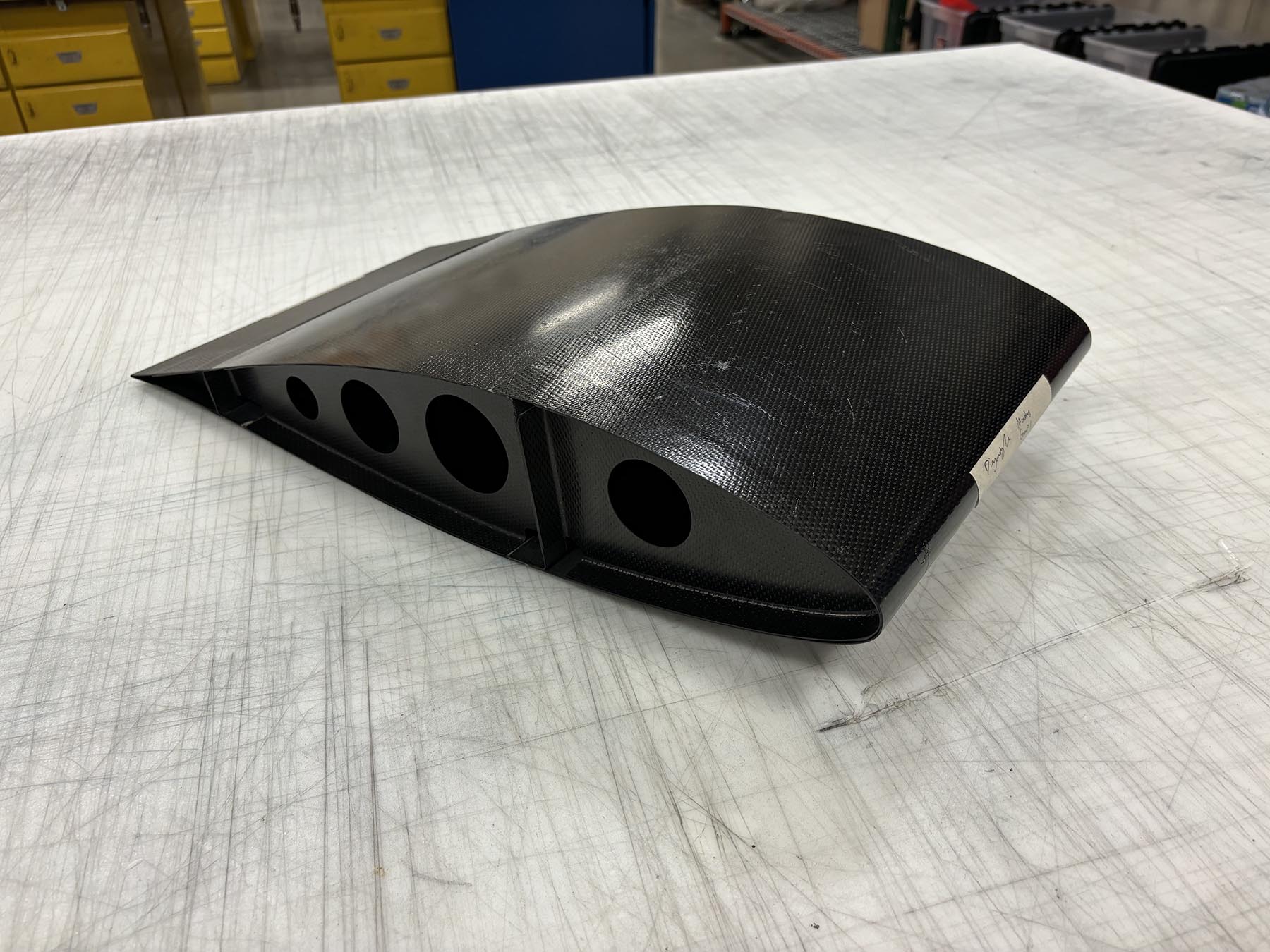

CP AT272 Lab11 08 — Figure 8: done
