Course Project: AT272 Lab 07: Trailing Edge Ribs

Dingming LuDec 20, 2023

I. Intro

Date: 10/16/2023

This time we were making trailing edge ribs. We used a computer software to put the plies onto the material and the let the machine to cut it.

II. Procedure

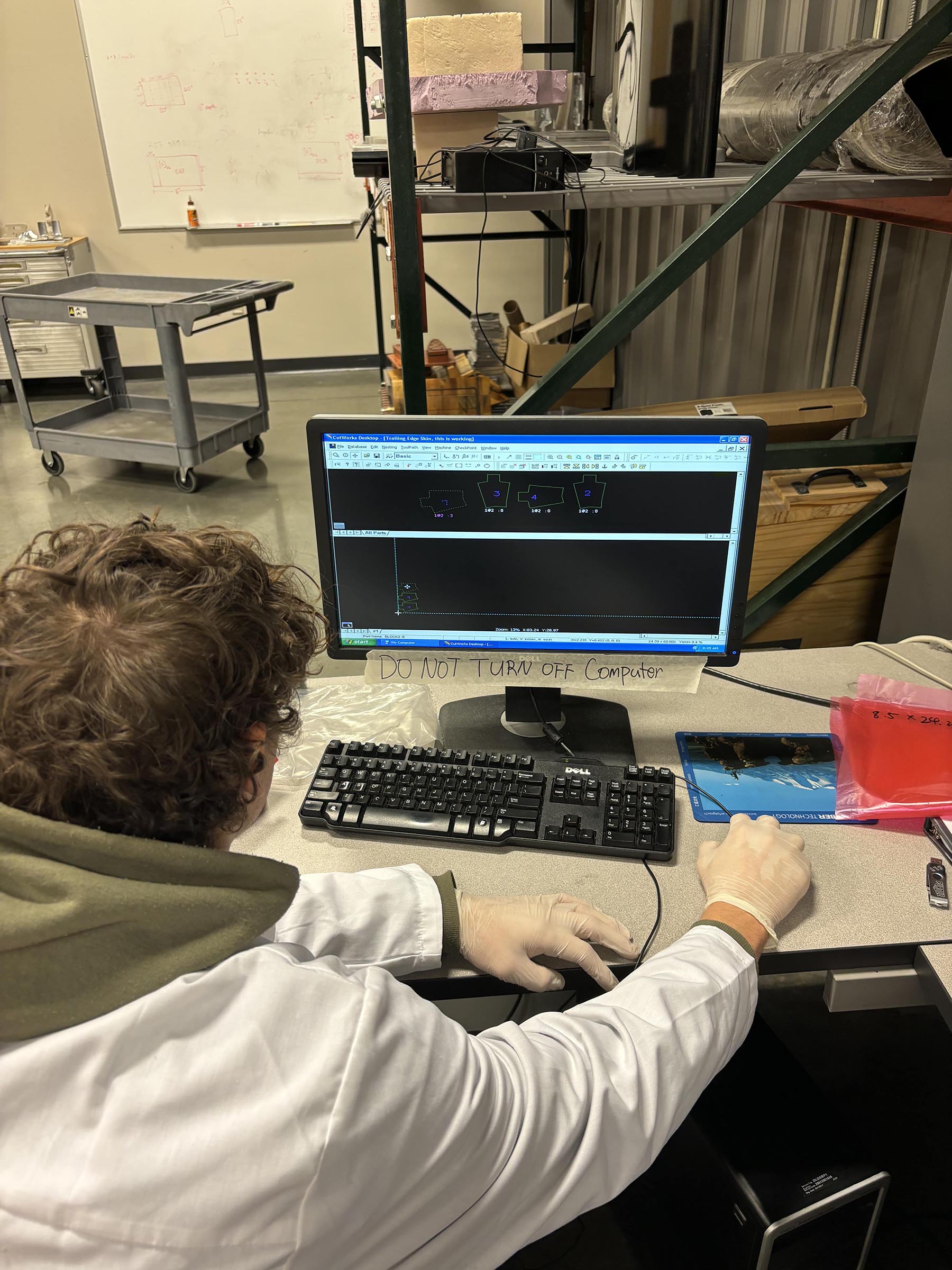

CP AT272 Lab07 01 — Figure 1: put the plies onto the material

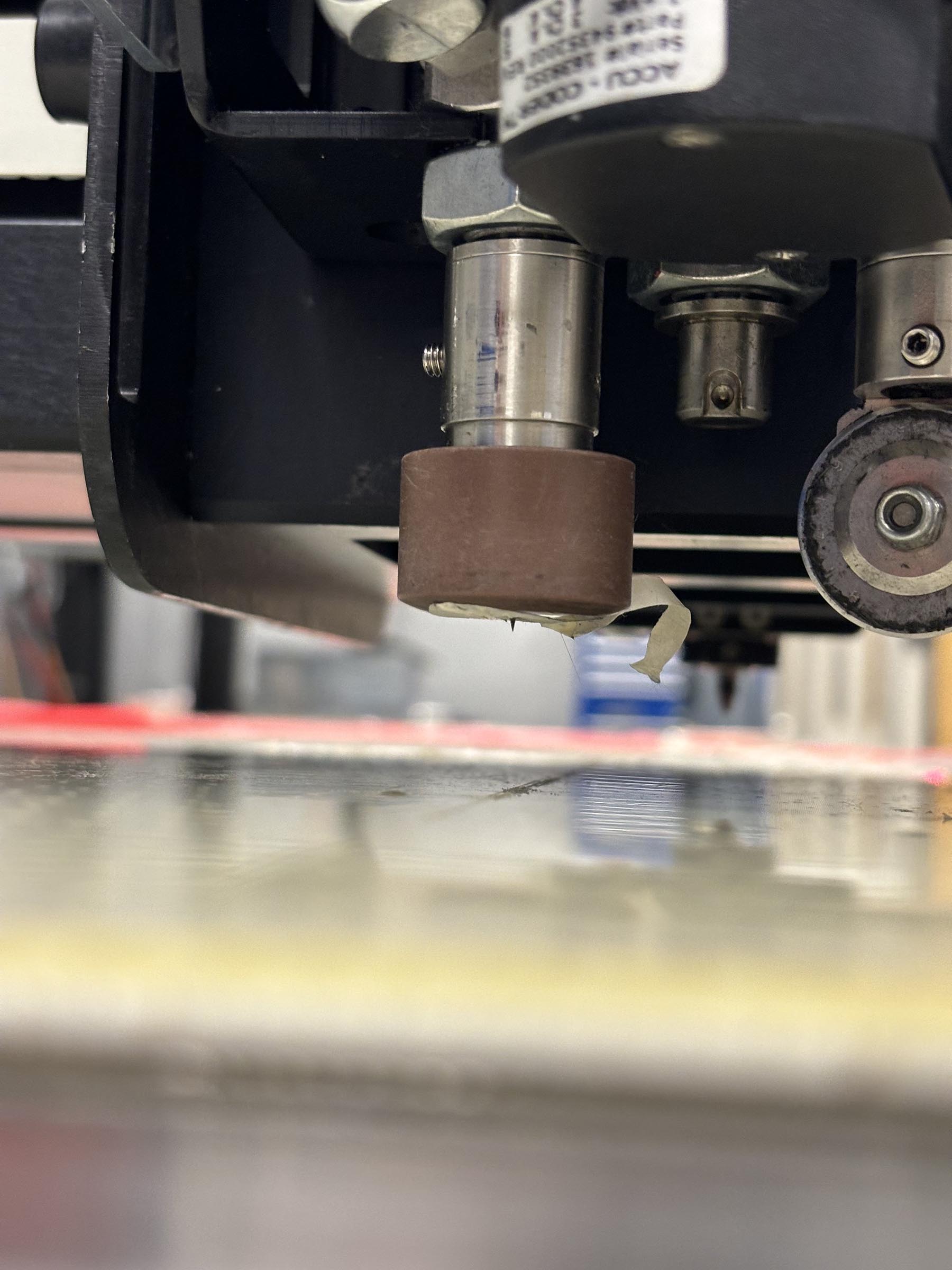

CP AT272 Lab07 03 — Figure 3: the cutting section

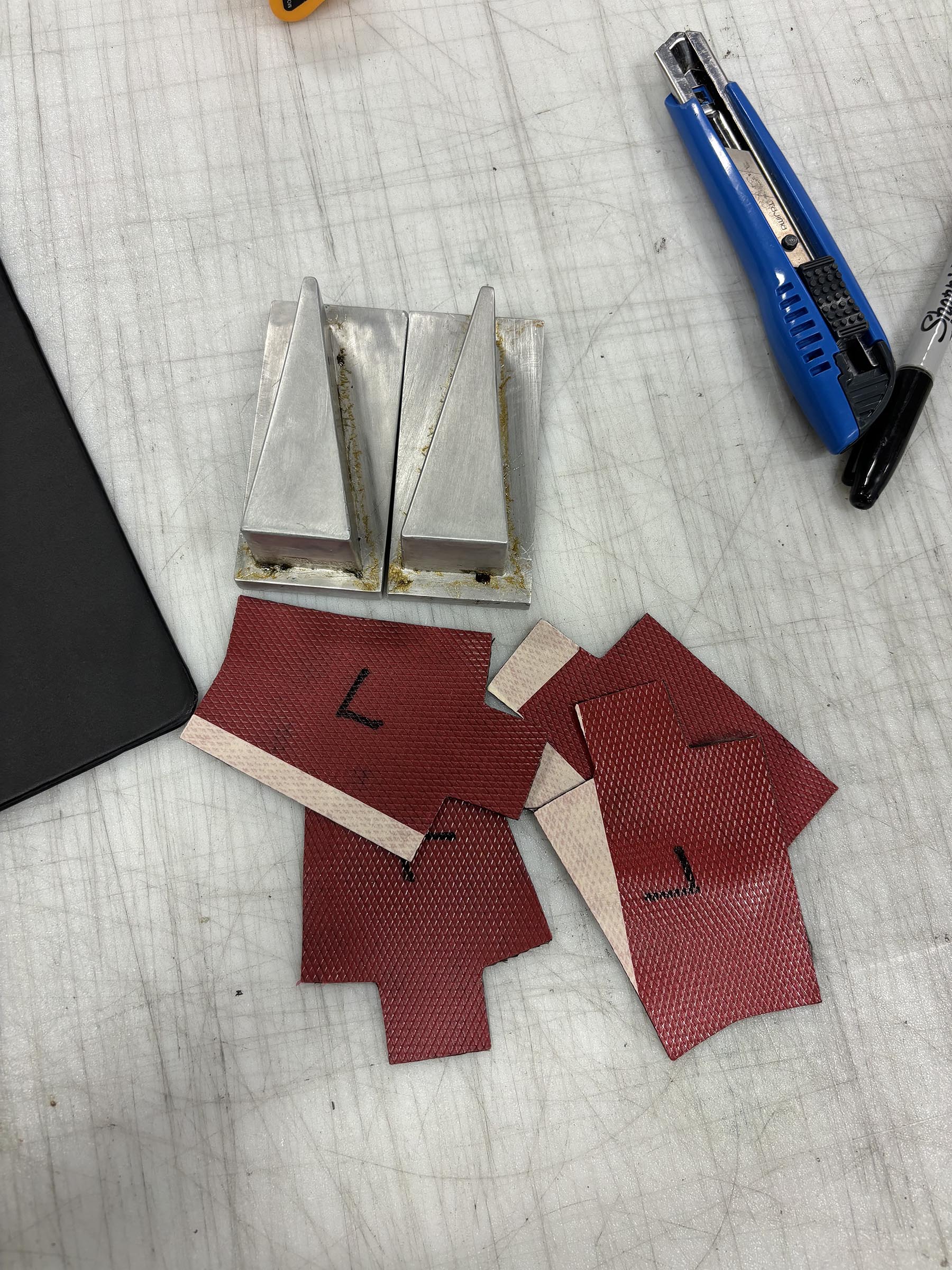

CP AT272 Lab07 04 — Figure 4: material needed

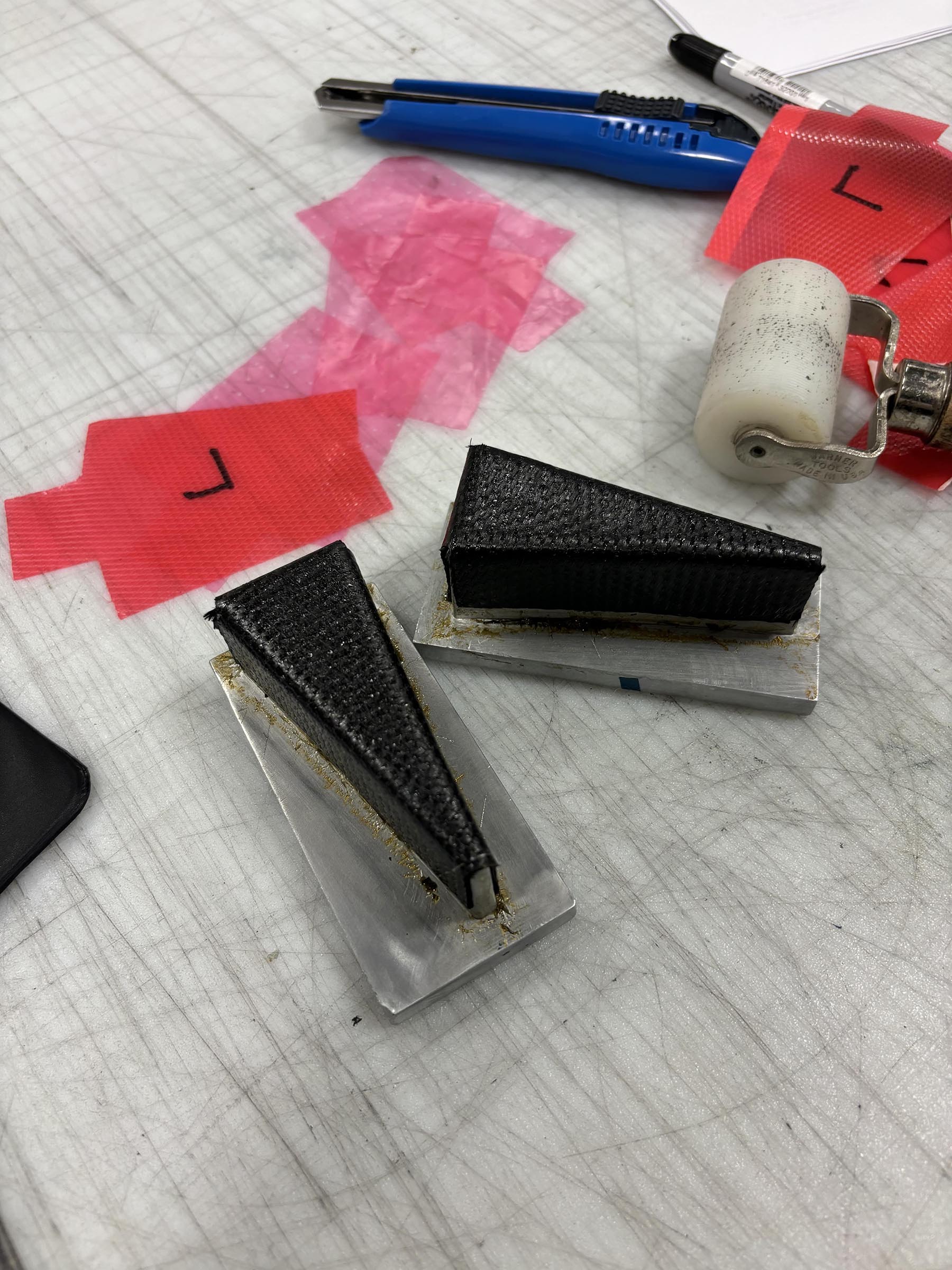

CP AT272 Lab07 05 — Figure 5: put on the mold

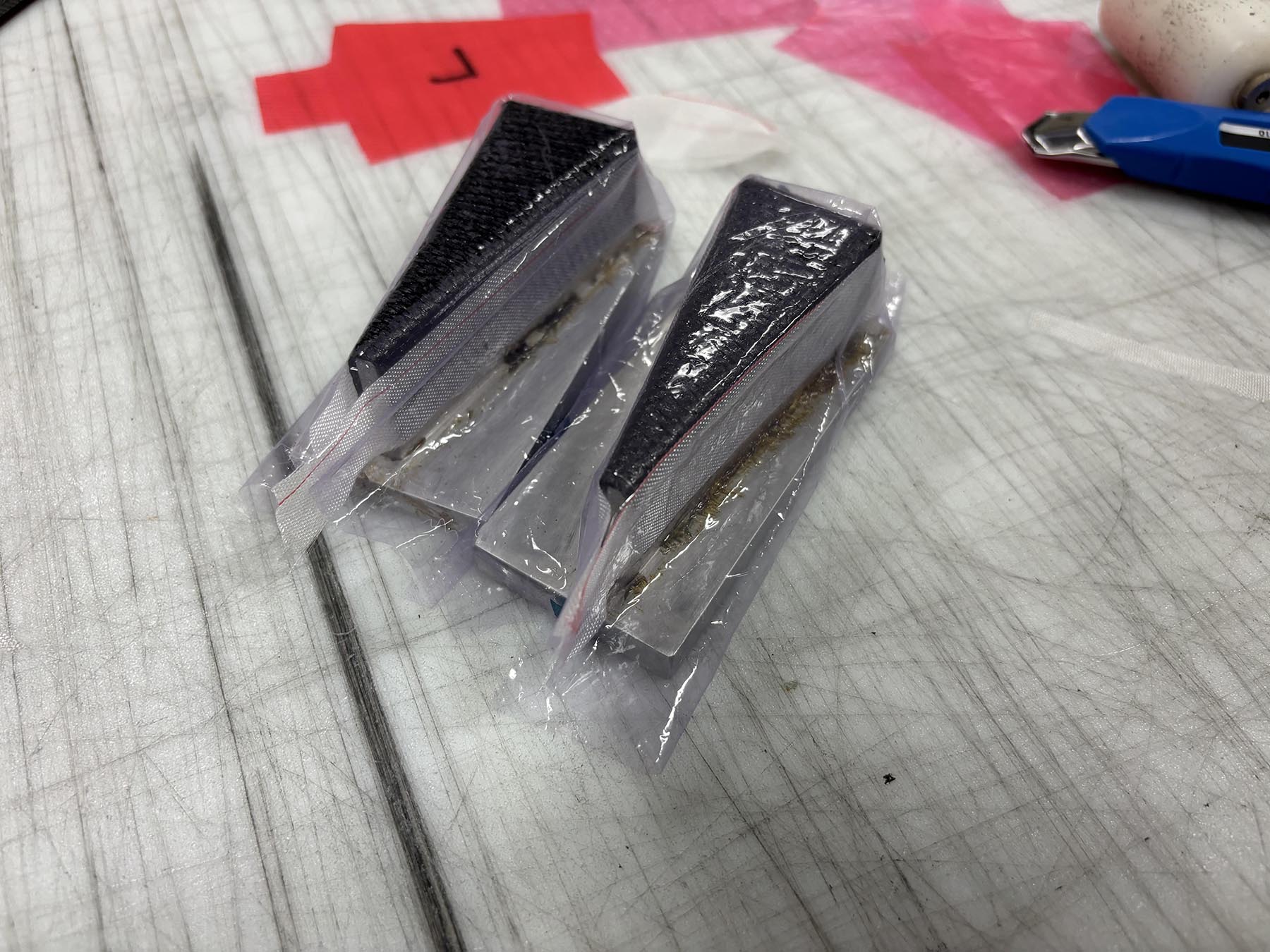

CP AT272 Lab07 06 — Figure 6: put on the peel ply and release film

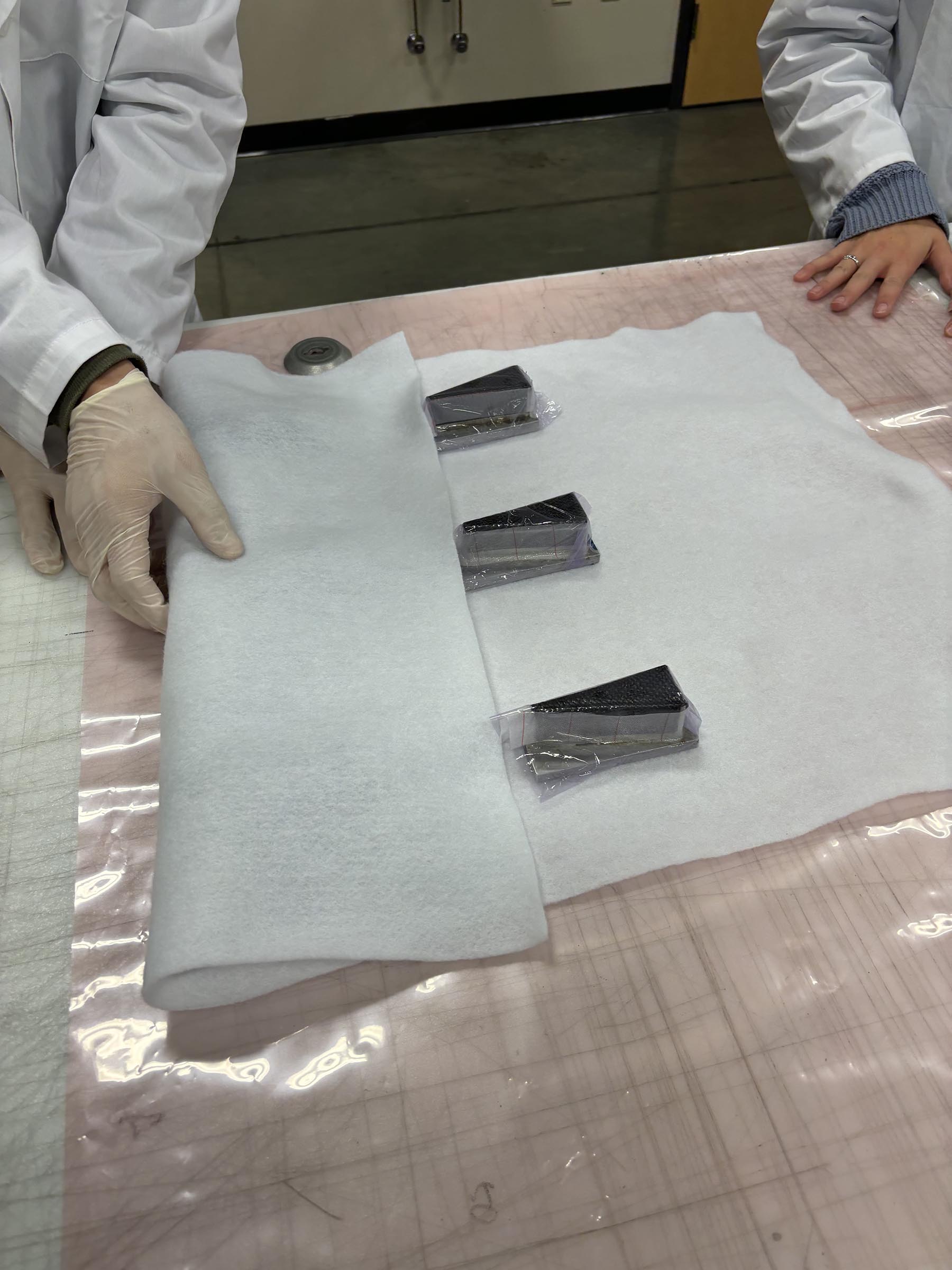

CP AT272 Lab07 07 — Figure 7: group of 3 used the same bag.

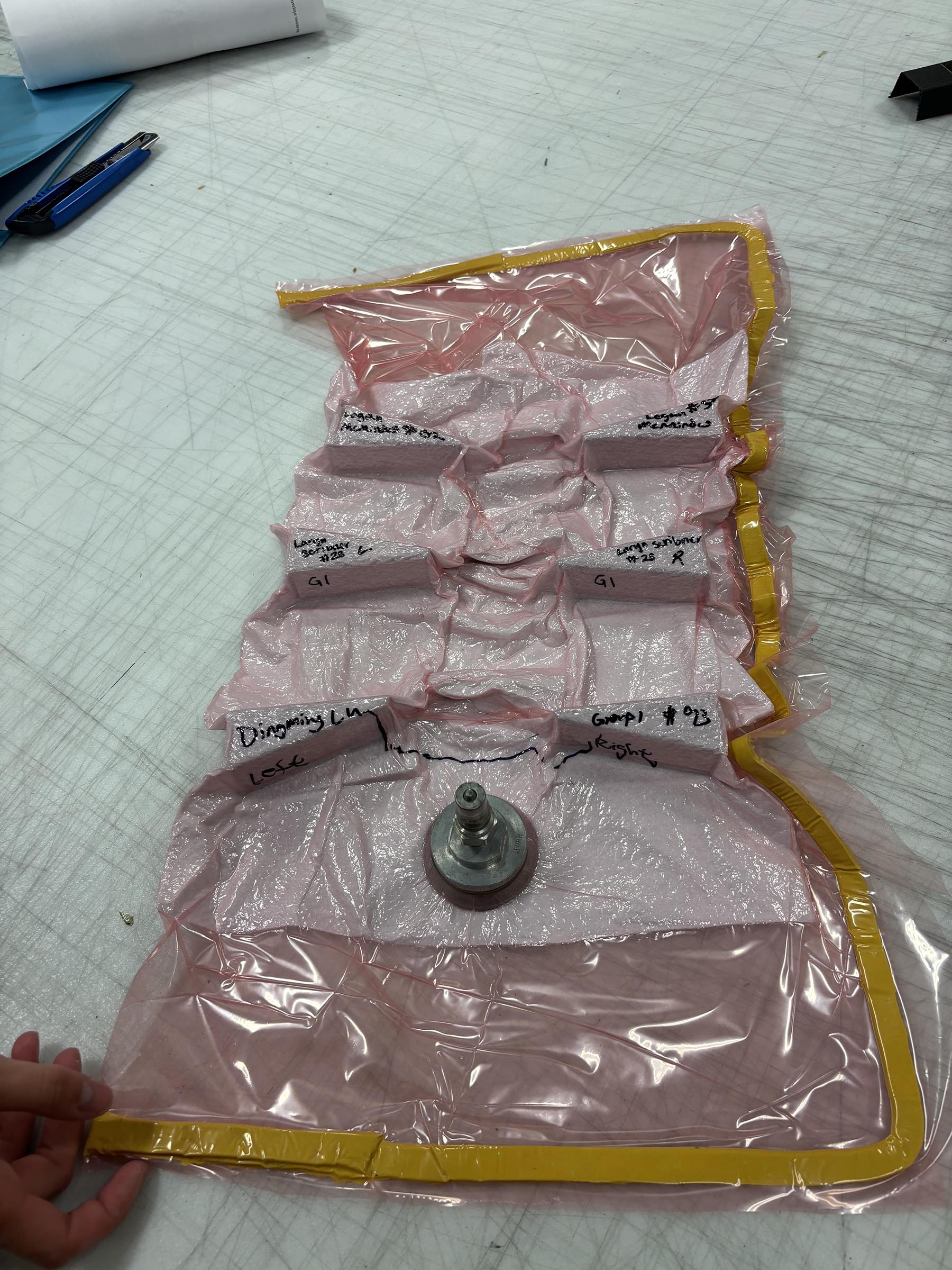

CP AT272 Lab07 08 — Figure 8: 6 parts in one vacuum bag

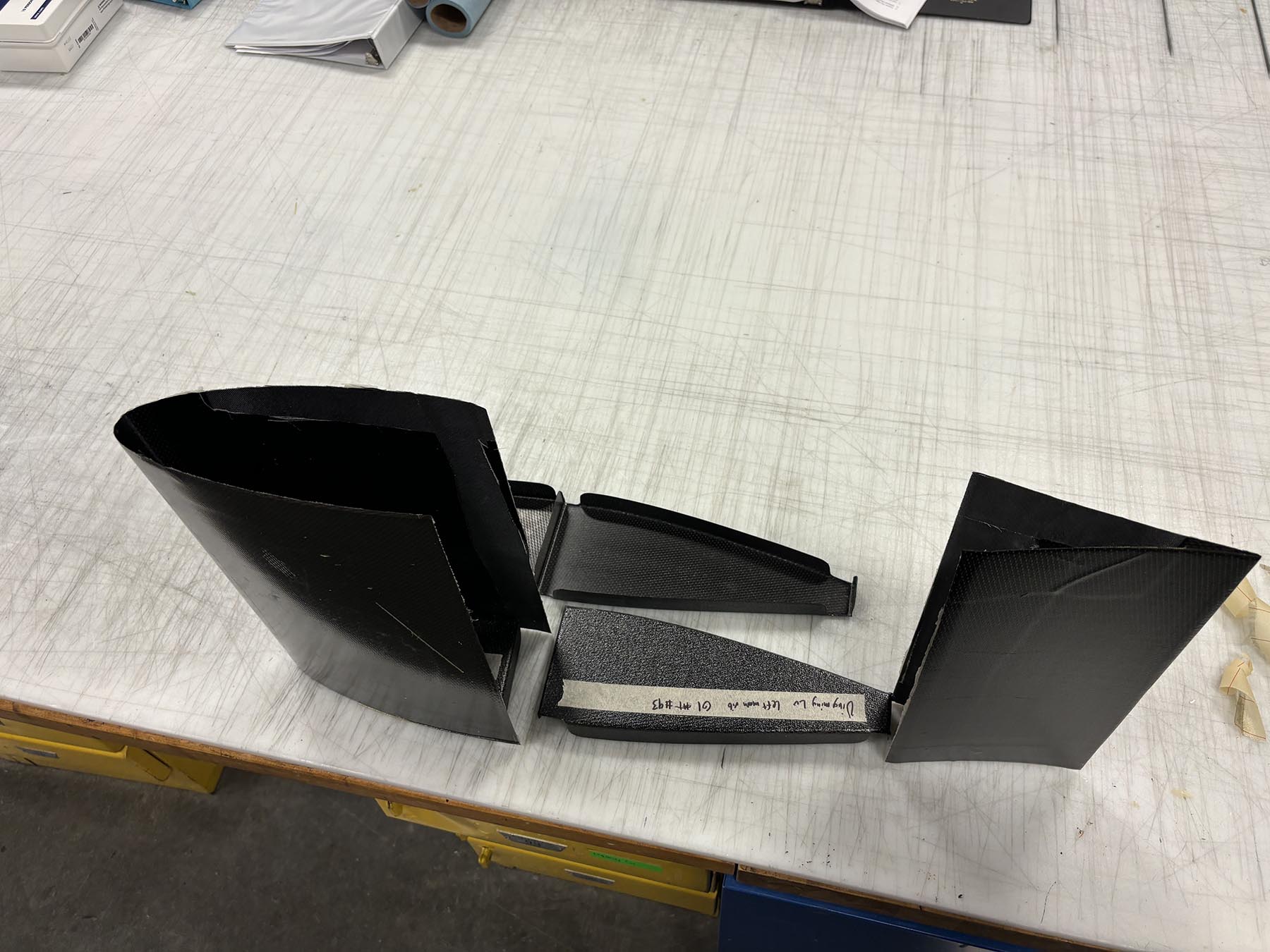

CP AT272 Lab07 09 — Figure 9: final assembly is something like this.
